ASFF-9 Free Standing, One Touch Wrist Strap and Dual Footwear Test System

You May Also Need:

en français

Features

Two in one instrument to check both wrist straps and footwear.
Extremely easy to use. Just touch one Test Button to complete the test.
Built using SMT technology for reliability.
Microprocessor controlled for accuracy.
Dependable and simple.
Pass tone is easy to hear.
Visual indicators to show pass, low or high fail and low battery condition.

The wrist strap and independent footwear tester system was created to fill a growing demand for a dependable, low cost and easy-to-use test mechanism for personnel grounding devices. It is available as ASFF-9U Tester, (U.S. standards) a 750-kohms to 10-Mohms range for wrist straps and 750kohms to 100Mohms range for footwear and ASFF-9E Tester (European standards) a 750-kohms to 35-Mohms range for both wrist straps and footwear

System includes

AR-9 One Touch Wrist and Footwear Tester with 9V battery
AR-9-SP - Post, Connecting wire and Plate with test instructions for ASFF-9 Unit
A FP2 - Dual Foot plate
Manual

Technical specifications

	ASFF-9U (U.S.A. Parameters)		ASFF-9E (European Parameters) For both wrist straps and foot wear
	Wrist Straps	Foot wear
Pass Level	750 kohm-10 Mohm; green light and audible tone	750 kohm-100 Mohm; green light and audible tone	750 kohm-35 Mohm; green light and audible tone
Low Fail	< 750 kohm; yellow light no tone	< 750 kohm; yellow light no tone	< 750 kohm; yellow light no tone
High Fail	> 10 Mohm; red light no tone	> 100 Mohm; red light no tone	> 35 Mohm; red light no tone

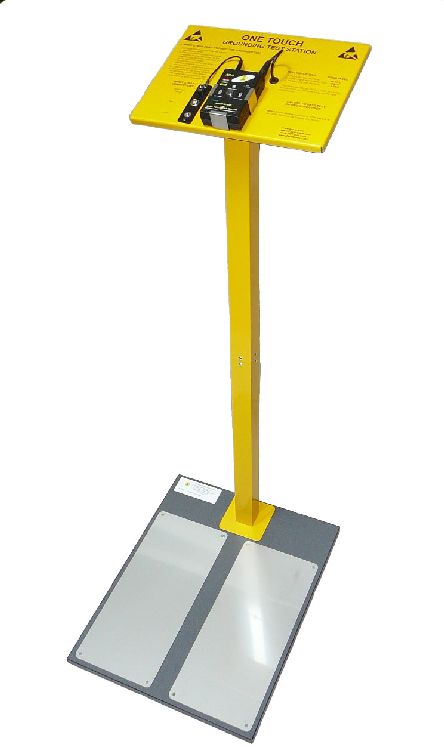

ASFF-9

Plate with test instructions
and One Touch Wrist
and Footwear Tester
