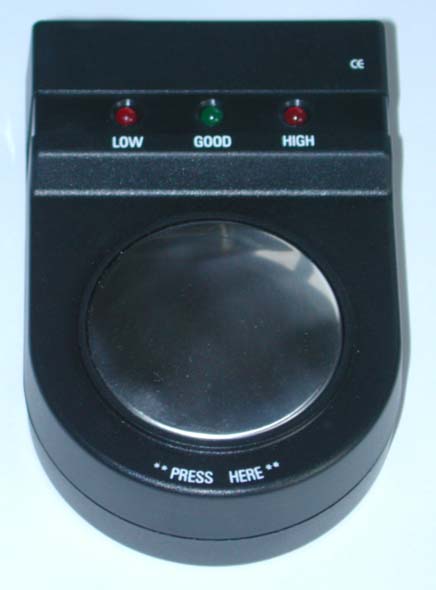

A-R10 - Wrist strap tester |
Connect the grounding wire and press the center pad. If the
grounding system is safe, the green "good" lamp will light up
and an audible signal will be heard. Can be used anywhere to quickly and
easily check a variety of grounding systems. Ensures employee safety and
eliminates product defects caused by electrostatic discharge.
Unit quickly & simply checks all the following:
- Wrist straps & grounding wires.
- Contact resistance between the wrist strap and the skin.
- Wrist strap tester
- Ground wire: 6.2' (2,5m)
| Indication |
|
| LOW |
< 800 kohm |
| GOOD |
800 kohm - 9 Mohm |
| HIGH |
> 9 Mohm |
| Dimensions |
3.1" x 4.6" x 1.5"
(80 x 117 x 40 mm) |
| Power |
9V battery required |
Note: The tolerance in resistance is set to +10%-0% for lower
limit of 800 kohm and +0%-10% for upper limit of 9 Mohm |
