A-STAT-Check Static Electricity Locator and Meter
Zero Charge


Static Electricity Locator is a must for everyone to "see" static field.

Indispensable, inexpensive tool to protect and prevent Static Electricity Damage. Also- verify effectives of applied counter-measures.

Pocket-size. Runs six months on AA-Batteries.

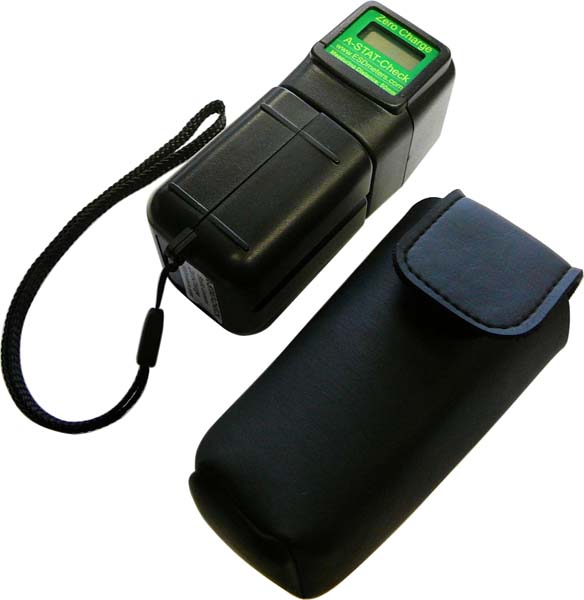

A-STAT-Check

A-STAT-Check

Features

  • The potential of Static Electricity accumulated on an object under investigation is shown on digital display. No need to touch. Simply point and measure Invisible Static Electricity.
  • Voltage is measured and indicated in units of 100V in a range from -19.9 to + 19.9KV every 0.5 second.
  • Handy, portable, small and lightweight. Soft storage case included.
  • Low power consumption. Can be used with 4 AA batteries for about 6 months.
  • Supplied with soft, protective Etui.

Applications

Checking the presence of Static Electricity everywhere. Helps you to “see” what you can not see otherwise, and prepare countermeasure against Static Charge. Indispensable in Electronics production and Service. Also very useful in resin molding, film or paper processing, during packing containers, or checking coated sheet metal surfaces for charging, and Indispensable in testing the effect of the electricity removal.

Technical Specification

RANGE OF INDICATION 0.0 to ±19.9 KV (0.1KV scale)
DETECTABLE DISTANCE 50 mm (between locator and charged item)
RESPONSE TIME 0.5 sec
AMBIENT TEMPERATURE 0 ~ 40 °C
AMBIENT HUMIDITY 20 to 90%RH (no dewing)
DIRECTIVITY Forward direction from the sensor hole
POWER SUPPLY VOLTAGE 6V DC (AA batteries×4)

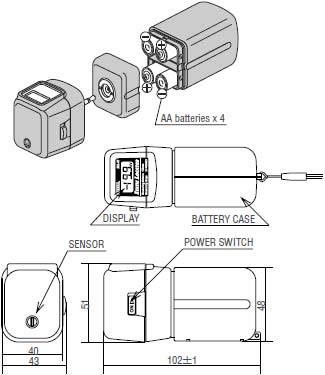

SIZE H51×W102×D43mm
WEIGHT 170g (including batteries)
ACCESSORIES AA batteries×4, soft case x1
